CNC Drilling, which stands for Computer Numerical Control Drilling, is an advanced machining process used to create holes in various materials. This process involves the use of computer-controlled drilling machines that can accurately and efficiently perform the drilling operation based on pre-programmed instructions. CNC drilling is a fundamental technique in the field of manufacturing and plays a crucial role in the production of a wide range of products, from simple metal components to complex aerospace parts.
CNC drilling operates through a series of automated steps that are controlled by a computer. Here’s an overview of how the CNC drilling process works:
The process begins with a detailed design of the part that needs drilling. This design is created using CAD software, which provides the necessary dimensions and specifications for the holes.
The CAD file is then converted into a CNC program using CAM software. This program contains the specific instructions for the CNC machine, including the path the drill bit will take, the speed of the drilling, the depth of the holes, and any other relevant parameters.
The CNC drilling machine is prepared for the job. This involves loading the correct drill bits, securing the workpiece in place, and ensuring that all tools and equipment are calibrated and ready for operation.
The CNC program is loaded into the machine’s control unit. This tells the machine how to move and where to drill.
Spindle Activation: The spindle, which holds the drill bit, is activated and begins to rotate at the specified speed.
Movement Control: The CNC machine moves the drill bit to the precise starting position based on the program’s instructions.
Drilling Execution: The machine descends the drill bit into the material, creating the hole. The feed rate (how quickly the drill bit moves into the material) and the spindle speed are carefully controlled to achieve the desired hole quality.
Repositioning: Once the hole is complete, the machine repositions the drill bit for the next hole or continues with the programmed pattern.
During the drilling process, a coolant may be applied to reduce heat and friction, prevent tool wear, and improve the quality of the drilled hole.
After all the holes are drilled, the machine stops, and the workpiece is removed for inspection. The holes are checked for accuracy, size, and finish to ensure they meet the design specifications.
The CNC drilling process is highly automated and requires minimal human intervention once the machine is set up and the program is running. This automation is what allows for the high precision and repeatability that are hallmarks of CNC drilling technology.
CNC drilling encompasses a variety of operations tailored to different manufacturing needs. Here are some of the most common CNC drilling operations:
Conventional Drilling: This is the standard drilling operation where the drill bit rotates to create a hole in a stationary workpiece. It’s suitable for creating round holes in most materials.
Counterboring: In this operation, a larger diameter hole is created after the initial smaller hole is drilled. This is often done to allow the head of a bolt or screw to sit flush with or below the surface of the workpiece.
Countersinking: Similar to counterboring, but instead of creating a flat-bottomed hole, a countersink creates a conical hole to allow a screw to sit flush with the surface and provide a cosmetic finish.
Reaming: This operation is used to improve the accuracy and surface finish of an existing hole. A reamer is a multi-edge cutting tool that removes a small amount of material to create a more precise and smooth hole.
Tapping: Tapping is the process of creating internal threads in a hole, allowing it to receive a screw or bolt. CNC machines can perform tapping operations with high precision.
Deep Hole Drilling: This is a specialized operation for creating deep holes with a high length-to-diameter ratio. It requires special tools and techniques to maintain accuracy and prevent tool breakage.
Multiple Spindle Drilling: This operation involves the use of multiple drill heads that can perform several drilling operations simultaneously, increasing production efficiency.
Gun Drilling: Used for creating long, straight holes with a small diameter, gun drilling is a high-speed operation that requires specialized equipment and coolant delivery systems.
Angle Drilling: This operation allows for the creation of holes at specific angles other than perpendicular to the workpiece surface. It’s commonly used in complex part designs.
Step Drilling: In step drilling, a single drill bit is used to create multiple holes with different diameters in a single pass. This is efficient for creating holes with varying depths or diameters.
Dovetail Drilling: This is a specialized drilling operation used to create dovetail slots, which are often used for securing components in machinery or for indexing purposes.
Each of these CNC drilling operations serves a specific purpose and can be customized based on the requirements of the manufacturing process. The versatility of CNC drilling machines allows for a wide range of operations to be performed with precision and efficiency.

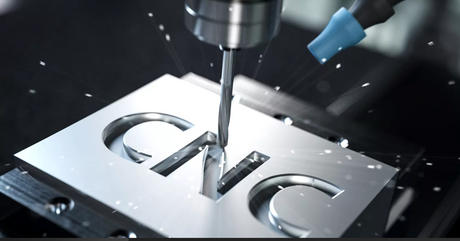

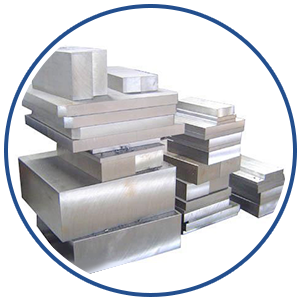

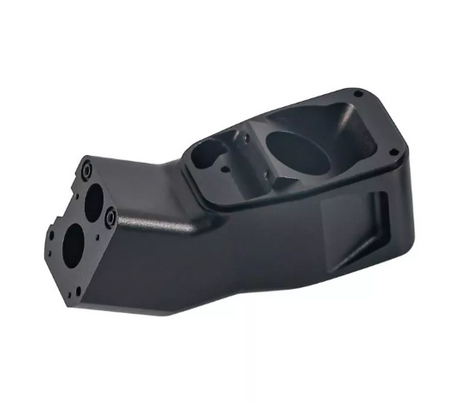

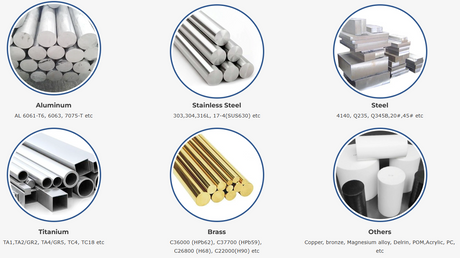

CNC drilling is a versatile machining process capable of working with a broad spectrum of materials. The choice of material depends on the application and the desired outcome of the drilling operation. Here’s a list of materials commonly supported in CNC drilling, along with considerations for each:
Steel: A widely used material in CNC drilling, steel comes in various grades, including carbon steel, alloy steel, and stainless steel. Each type requires specific drill bits and parameters to achieve optimal results.
Aluminum: Lightweight and easily machinable, aluminum is commonly used in aerospace and automotive industries. It requires less force to drill and cools quickly, which can extend tool life.
Titanium: Known for its strength-to-weight ratio, titanium is used in high-performance applications. It is more challenging to drill due to its high strength and heat resistance, requiring specialized tools and techniques.
Copper and Brass: These materials are relatively soft and easy to drill. However, they can cause significant tool wear due to their high thermal conductivity.
Cast Iron: Cast iron is brittle and can be challenging to drill without causing cracks or breaking. It requires slower speeds and heavier feeds to prevent chipping.
Inconel and other Nickel Alloys: These superalloys are used in extreme environments and require high-quality drills and careful machining to prevent tool wear.
Titanium Alloys: Similar to pure titanium, these alloys demand specialized drills and high spindle speeds for effective cutting.
Plastics: ABS, Acrylic, and Polycarbonate: These thermoplastics are commonly drilled for consumer products and signage. They are relatively easy to machine but can melt or deform if the drill speed is too high or the feed rate is too slow.
Nylon and Polyamide: These materials are tough and can be drilled with standard twist drills, but they require lower speeds to prevent melting.
Fiberglass and Carbon Fiber: These materials are difficult to drill due to their reinforcing fibers. Special drills and techniques are needed to prevent delamination and fiber breakage.
Alumina and Zirconia: Ceramics are extremely hard and brittle, requiring diamond or carbide-tipped drills for effective machining. Slow speeds and minimal feed rates are essential to avoid cracking.
Softwoods and Hardwoods: Wood is relatively easy to drill, but the choice of drill bit (brad-point or twist drill) depends on the desired finish and the type of wood.
When drilling these materials, it’s crucial to consider the following factors:
Tooling: Selecting the correct drill bit material (e.g., high-speed steel, carbide, or diamond) is vital for efficient machining and tool longevity.
Speeds and Feeds: The spindle speed and feed rate must be optimized for each material to prevent damage to the workpiece or the drill bit.
Coolant: The use of coolant can improve chip evacuation, reduce heat, and extend tool life, especially when drilling metals and harder materials.
By understanding the properties and requirements of each material, manufacturers can ensure successful CNC drilling operations that yield high-quality results.
CNC drilling is a fundamental process in various industries due to its precision, efficiency, and versatility. Here are some of the key applications across different sectors:
CNC drilling is used to create precision holes in aircraft components, such as wings, fuselages, and engine parts.
Drilling operations are critical for the assembly of complex systems, including landing gear and hydraulic lines.
Engine blocks, transmission cases, and other powertrain components require precise holes for fuel injection, lubrication, and cooling systems.
CNC drilling is used in the manufacturing of chassis, where holes for bolts and rivets are needed for assembly.
The production of PCBs (printed circuit boards) relies heavily on CNC drilling for creating holes for component leads and vias.
CNC drilling is used in the assembly of electronic enclosures and devices for screw holes and mounting features.
CNC drilling is employed in the manufacturing of surgical instruments, implants, and prosthetics, where precision is paramount.
Dental drills used for creating cavities and preparing teeth for fillings are often produced using CNC drilling techniques.
In the production of wind turbines, CNC drilling is used to create holes for fasteners in the blades and tower sections.
Drilling operations are essential for oil and gas equipment, including pipes, valves, and flanges.
CNC drilling machines themselves require precision holes for their components, such as ball screws, linear guides, and tool holders.
The manufacturing of other machine tools, like lathes and mills, involves CNC drilling for various functional and structural elements.
CNC drilling is used in the production of steel and concrete components for buildings, bridges, and other structures.
Drilling large diameter holes for rebar placement in concrete is a common application in construction.
Household appliances, furniture, and other consumer products often require holes for assembly, wiring, and aesthetics.
CNC drilling is used in the production of musical instruments, where precise holes are necessary for sound quality.
CNC drilling is employed in the manufacturing of tractors, harvesters, and other agricultural machinery for holes in engine components and structural elements.
The construction of ships and offshore platforms involves extensive use of CNC drilling for creating holes in hulls, decks, and piping systems.
The applications of CNC drilling are vast and diverse, spanning across industries that demand high precision and reliability in their manufacturing processes. The ability of CNC drilling to handle a wide range of materials and complex designs makes it an indispensable technology in modern manufacturing.
CNC drilling offers a multitude of benefits that have solidified its position as a preferred method in various manufacturing sectors. The advantages of CNC drilling are evident in several key areas:
One of the primary advantages of CNC drilling is its exceptional precision and accuracy. CNC machines are programmed to exact specifications, ensuring that each hole is placed with pinpoint accuracy and consistency. This level of precision is crucial for industries that require tight tolerances, such as aerospace and electronics, where even minor deviations can compromise the functionality of the final product.
CNC drilling significantly increases production efficiency by reducing the time required to set up and perform drilling operations. Once programmed, the CNC machine can execute the drilling process quickly and repeatedly without the need for manual intervention. This speed not only boosts productivity but also reduces labor costs and shortens lead times.
The versatility of CNC drilling is another significant advantage. CNC machines can handle a wide variety of materials, from soft woods to hard metals, and can perform different types of drilling operations, such as counterboring, countersinking, and tapping. This flexibility allows manufacturers to use a single machine for multiple tasks, streamlining their operations and reducing the need for specialized equipment.
CNC drilling ensures that each hole is identical to the one before it, providing unmatched repeatability and consistency across a batch of parts. This consistency is particularly valuable for mass production, where uniformity is essential. It also simplifies quality control processes, as the machine’s reliability minimizes the need for extensive inspections.
With CNC drilling, the need for skilled labor is significantly reduced. Once the machine is programmed, an operator with less specialized training can oversee the production process. This not only cuts labor costs but also addresses the challenges of finding and retaining highly skilled workers.
CNC drilling enhances workplace safety by minimizing the risk of accidents. Operators are not required to manually handle the drilling process, reducing the likelihood of injuries associated with manual drilling operations. Additionally, CNC machines can operate in a controlled environment, further enhancing safety standards.
The precision of CNC drilling leads to less material waste. The machine’s ability to create holes with minimal material removal and without damaging the workpiece helps to conserve materials, which can result in cost savings over time.
What is the main difference between CNC drilling and traditional manual drilling?
The main difference is the level of precision and automation. CNC drilling uses computer-controlled machines to perform drilling operations with high accuracy and consistency, whereas traditional manual drilling relies on human operators and is less precise and consistent.
Which materials are best suited for CNC drilling?
CNC drilling is versatile and can be used on a wide range of materials, including various metals (steel, aluminum, titanium), plastics, ceramics, and woods. The choice of material depends on the specific application and the capabilities of the CNC drilling machine.
How does CNC drilling contribute to cost savings in manufacturing?
CNC drilling saves costs by increasing production efficiency, reducing labor expenses, minimizing material waste, and improving product quality, which can reduce the need for rework or scrap.
What are the key factors to consider when setting up a CNC drilling operation?
Key factors include selecting the appropriate drill bit for the material, programming the CNC machine with the correct drilling parameters (speeds, feeds, and depths), ensuring proper workpiece fixation, and applying the right coolant to enhance tool life and part quality.
In which industries is CNC drilling most commonly used?
CNC drilling is widely used in industries such as aerospace, automotive, electronics, medical, energy, machine tool, construction, consumer goods, agricultural equipment, and marine shipbuilding, where precision and high-quality manufacturing are essential.
